ASUS ROG Maximus Z890 Apex Review: The Overclocker’s Dream Motherboard
The ROG Maximus line has represented ASUS’s highest-end consumer motherboards for over a decade. The Z890 Apex follows that tradition: a full-featured ATX motherboard with a 20+1 phase VRM designed to push Intel Core Ultra 200S processors as hard as silicon allows. After weeks of testing including extended overclocking sessions, here is whether the premium over mid-range Z890 boards is justified.
Design and Build

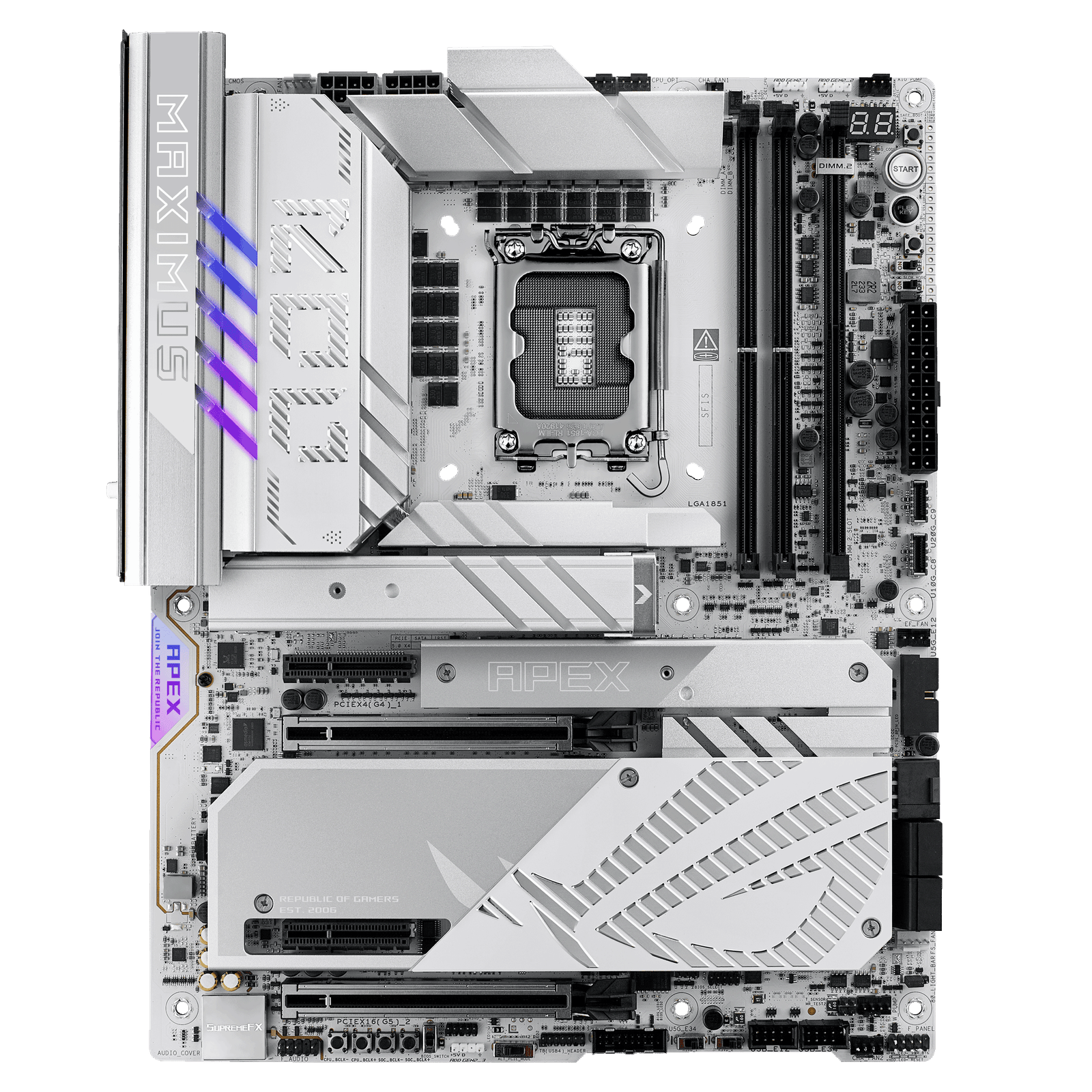

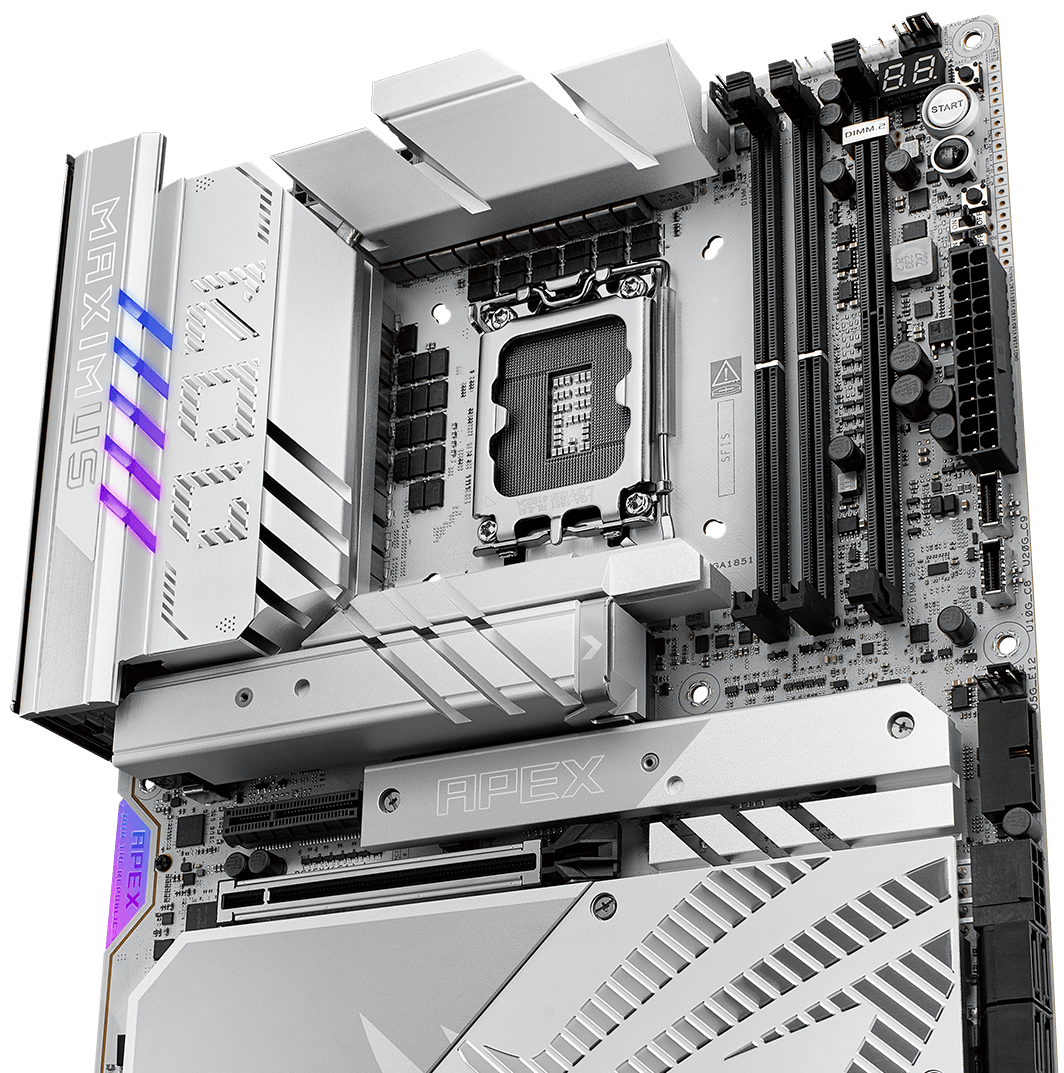

The Z890 Apex uses a white and grey color scheme with aggressive ROG angular design elements – this board makes its presence known in a windowed case. The PCIe slot covers, I/O shield, and VRM heatsinks are all metal with a premium finish. The board layout is well-considered: the 24-pin power connector is positioned at the top right edge for easy cable routing, M.2 slots are stacked vertically for ease of access, and the 2× 8-pin EPS CPU power connectors are positioned away from the RAM slots. Component quality is visible – Japanese-spec capacitors, the reinforced PCIe x16 slot, and the ProCool II power connectors all signal a board built for sustained high-power operation.
Specs at a Glance
| Specification | Details |
|---|---|
| Socket | LGA 1851 (Intel 15th Gen) |
| Chipset | Intel Z890 |
| Form factor | ATX |
| VRM | 20+1 phase, 100A SPS |
| RAM slots | 4× DDR5 (up to 192GB, 9600+ MT/s) |
| M.2 slots | 5× M.2 (all PCIe 5.0 x4) |
| PCIe x16 | PCIe 5.0 (reinforced) |
| Rear I/O | 10Gbps Ethernet, Wi-Fi 7, USB4, Thunderbolt 4 |
| Price | $699 |
VRM Performance and Overclocking
The 20+1 phase VRM with 100A power stages is the headline specification. At stock Intel Core Ultra 9 285K settings, VRM temperatures under a sustained Prime95 stress test peaked at 58°C – cool enough to indicate significant headroom. Under a 6.4GHz all-core overclock, VRM temperatures peaked at 74°C during stress testing – still within safe operating range for this component quality. In gaming and real-world workloads at overclocked settings, VRM temperatures stayed below 65°C. The ROG Maximus Z890 Apex can sustain significant overclocks indefinitely without VRM thermal throttling – which is precisely the point of this board class.
Memory Performance
The Z890 Apex is designed to push DDR5 beyond the XMP profiles that mid-range boards target. With quality DDR5-7200 kits, the board ran stable at DDR5-8400 with manual timing adjustments – speeds that require board-level features (ProMemory II OC profiles, enhanced DRAM signal routing) beyond what mainstream Z890 boards offer. Real-world gaming performance improvements from DDR5-6400 to DDR5-8400 are modest – 2-5fps in CPU-limited scenarios. The memory overclocking capability is primarily meaningful for benchmark enthusiasts and workstation use cases that benefit from memory bandwidth.
Connectivity
The rear I/O panel is fully equipped: 10Gbps Intel Ethernet (2× ports), Intel Wi-Fi 7, four Thunderbolt 4 ports (one rated at 120W power delivery), USB4 Gen 3×2 (40Gbps), standard USB-A 3.2 Gen 2 ports, a 3.5mm audio stack with high-quality DAC, and the BIOS Flashback button for BIOS updates without a CPU installed. The 10Gbps dual Ethernet is a standout for network-intensive workloads. Thunderbolt 4 enables high-bandwidth external storage and dual 4K display output from a single port.
Who Should Buy the Z890 Apex
The ROG Maximus Z890 Apex at $699 makes sense for: overclockers who plan to push Intel Core Ultra processors to their limits, system builders who want every connectivity option available without add-in cards, content creators who benefit from Thunderbolt 4 for external storage and displays, and enthusiasts for whom the build itself is part of the value.
It does not make sense for users who run stock settings and primarily game – a mid-range Z890 board at $200-$300 handles standard configurations equally well. The premium pays for overclocking headroom and connectivity that only specific use cases require.
For a value-oriented alternative, read our best budget gaming PC build guide. For GPU recommendations to pair with this board, see our RTX 5090 review and RX 9070 XT review.
Verdict
The ASUS ROG Maximus Z890 Apex is the best Intel overclocking motherboard available. VRM quality, memory overclocking capability, connectivity breadth, and build quality all justify the $699 price for the right buyer. For enthusiasts who want to extract maximum performance from Intel Core Ultra 200S processors, it delivers on every specification. For gamers running stock settings, a $250 Z890 board provides the same gaming experience at a third of the cost.
